U-AMP – opensource versatile audio amp

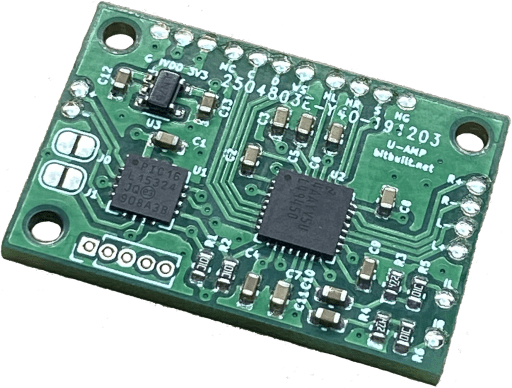

uamp1

It’s now 2020, I don’t see myself using normal old analog audio in a portable ever again. I’ve got digital audio working for PS2, Wii, Dreamcast, and even almost N64. Digital audio has the benefits of being able to bypass the digital-to-analog audio converter present on motherboards which takes out the middle man to reduce interference on the audio output. This also gives the best audio quality you can have in a portable and allows us to trim motherboards smaller in some cases.

The portablizing community has needed a good audio solution for a very long time. The only audio amps commercially available are portable speakers, which is a bad hack. And the PAM8803, which doesnt have a headphone amplifier. Neither of these solutions is ideal.

Using what I learned getting digital audio working on each systems, I set out on a new project I would call “U-AMP” (Universal-Amp). This would be ONE pcb which has the features of seamlessly integrated speakers and headphones with a variety of input sources for digital audio from Wii, PS2, Dreamcast, as well as analog audio input. It does it all. The board is based around the LM49450 IC which I have used many times. The amp is controlled by a PICLF15324; the LF version of the same PIC I use in the WiiPMS. I added two jumpers on the pcb which set the audio configuration between the four input sources. The code will configure the LM49450 to operate in the correct console mode. It also handles volume control. I added the feature to be able to hold the volume plus/down and it will periodically increase, rather than tapping it fiercely. It also has a quick mute feature by pressing the plus and minus buttons at the same time to toggle mute.

The U-AMP is now available for purchase in the BitBuilt store and fully opensource on my github

https://store.bitbuilt.net/u-amp/

https://bitbuilt.net/forums/index.php?threads/u-amp-documentation.3062/

https://github.com/Gmanmodz/U-AMP
