Another Wii portable completed

The G-Wii is a Wii portable I’ve been doing on commission for quite some time. Even though I’ve been putting a lot of effort into custom PCBs lately, this one is assembled without any custom parts! It’s a relatively easy build so I have decided to release all the CAD files including complete SolidWorks assembly and STLs for 3D printing. A simple Wii portable foundation for beginners to get started is something that’s been needed for a long time so I hope to see more Wii portables being built. You can grab the files here

A little more about the process:

After modeling the case on the computer, I 3D printed it in PLA, applied bondo, and sanded it until it was as smooth as possible. I used several coats of primer to achieve this.

20180506_111949

I had to relocate the MX chip in this build so that way I could use Nintendont compatible with the OEM GC memory card since the customer requested that feature. I am not generally a fan of using hot glue, however I used it just this once for temporarily holding down the USB port mount until it could be screwed in during the final assembly.

20180821_151436

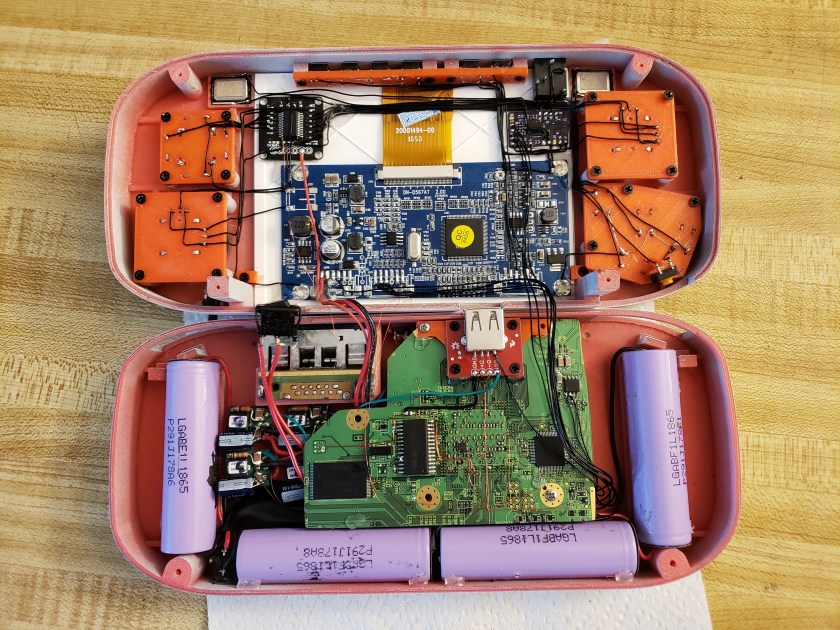

It’s all hand wired together which shows is still relevant in this age of custom PCBs. I used 4x 18650s to give about a 4 hour battery life. The VGA screen looks great with the VGA patches

To avoid more glue, I designed 3D printable mounts for all the parts I could and secured them using M2 screws.

20180822_112034

Thanks for reading. I’ve got some big projects coming up and I hope to keep this up.
